Data orchestration - ETL/ELT ​

Extract, Transform, and Load (ETL) and Extract, Load, and Transform (ELT) are processes used in data integration and data warehousing to extract, transform, and load data from various sources into a target destination, such as a data warehouse or a data lake.

This guide will take you through sample recipes with explanations, that represent practical use cases of ELT/ETL.

Bulk vs Batch ​

Bulk/Batch actions/triggers are available throughout Workato. Bulk processing gives you the ability to process large amounts of data in a single job, especially suited for ETL/ELT. Batch processing is restricted by batch sizes and memory constraints, and are generally less suitable in the context of ETL/ELT.

Extract, Transform, and Load (ETL) ​

ETL begins with the extraction phase, where data is sourced from multiple heterogeneous sources, including databases, files, APIs, and web services. This raw data is then subjected to a transformation phase (cleansing, filtering, etc.) and finally loaded into a target system, typically a data warehouse.

Sample ETL Recipe ​

Refer to the sample ETL recipe for a working example.

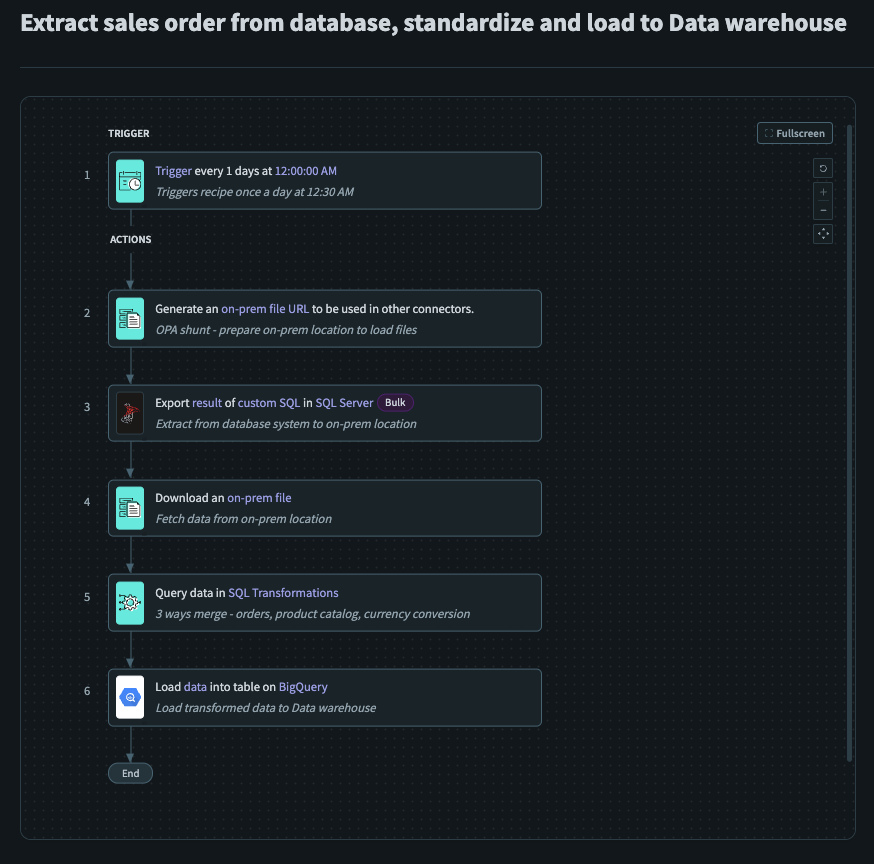

ETL RecipeSample ETL Recipe

Recipe Breakdown ​

The sample ETL recipe is a setup of how you can extract data from an on-prem data source (SQL Server), merge it together with a product catalog stored in Workato FileStorage and load this transformed output into a data warehouse (BigQuery). Additionally, Workato file streaming capabilities allows you to transfer data without having to worry about time or memory constraints. This recipe serves as a general guide when building ETL recipes, and performs basic transformations on data extracted from an on-prem data source before loading them into a data warehouse.

Setup ​

This recipe does not require any additional steps behind the scenes.

1

This recipe triggers on a schedule everyday at 0030. This trigger should be customized to your use case.

2

Used Generate on-prem file URL to prepare an on-prem location for the subsequent files to be loaded to.

3

Used Export query result (bulk) to extract the required Sales data from SQL Server, into the on-prem location specified in the previous step.

  • Loads data into the on-prem file created earlier
4

Used Download an on-prem file to retrieve the Sales data from the on-prem location that was specified earlier.

  • Retrieves the CSV content from the on-prem file created earlier
5

Used Query data using SQL Transformations to merge the Sales data with Product data retrieved from Workato FileStorage.

  • Merge Sales and Product Data to produce a transformed output, appropriate for the business requirement
6

Used Load data into BigQuery to load the transformed data into a Data Warehouse.

  • Final loading of the transformed output into a data warehouse

Extract, Load, and Transform (ELT) ​

Similar to ETL, ELT starts with the extraction phase, where data is extracted from various sources. ELT focuses on loading the extracted data into a target system such as a data lake or distributed storage. Once the data is loaded, transformations occur within the target system.

Sample ELT Recipe ​

Refer to the sample ELT recipe for a working example.

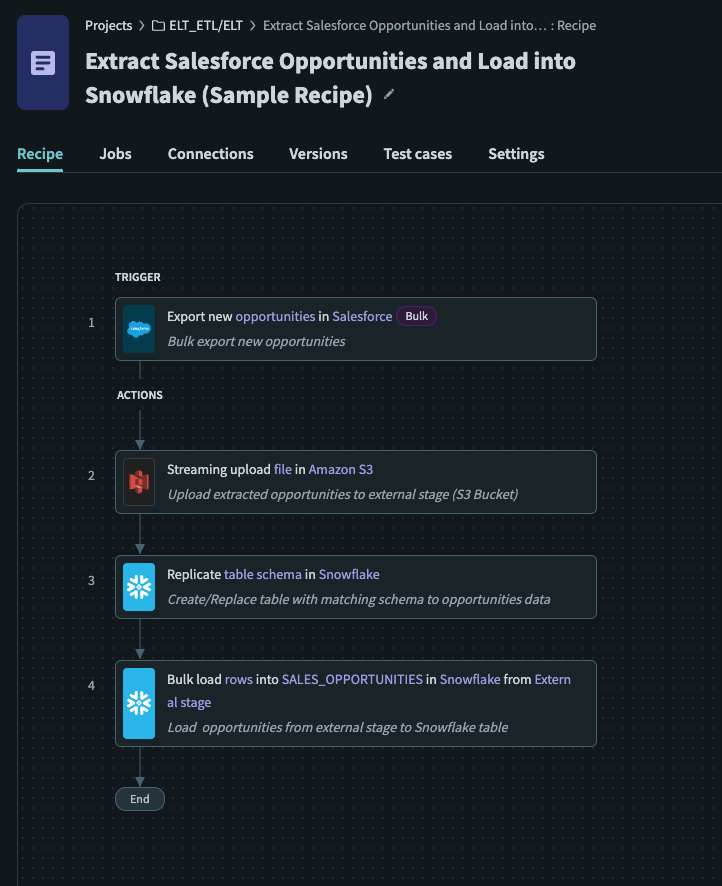

ELT RecipeSample ELT Recipe

Recipe Breakdown ​

The sample ELT recipe is a setup of how you can extract data from a cloud data source (Salesforce) into a data warehouse (Snowflake). This recipe serves as a guide when building ELT recipes, and performs the basic functionality of extracting bulk data from cloud data sources and loading them into a database.

Setup ​
  • You should have set up an external stage on Snowflake with the necessary permissions. Refer to the Snowflake CREATE STAGE documentation for more information.
1

Create a new recipe, using Export new/updated records (Bulk) as the trigger.

  • Configure the trigger according to your use case
  • Bulk actions are best suited for extracting large amounts of data in a single job
2

Used S3 Upload file (streaming) action to upload the extracted CSV file contents to designated S3 bucket.

  • Action streams the data extracted to the designated S3 bucket
3

Used Snowflake Replicate Schema action to create/update an new/existing table.

  • This step is optional. If you have an existing table that matches the schema of the staged data, this step is not necessary
  • Replicate schema ensures that the schema of the destination table in Snowflake exists and/or has an appropriate schema matching the source data.
4

Used Bulk load data to a table from an external stage to load data from staged files to an existing table.

  • Loads data from staged file setup in the previous step into an existing table using the COPY command
5

Data Transformation

This recipe does not show how transformation can be done in Snowflake. Data transformations can happen after loading data into a table, or even before. Refer to the Snowflake Querying data in staged files documentation for more information.
